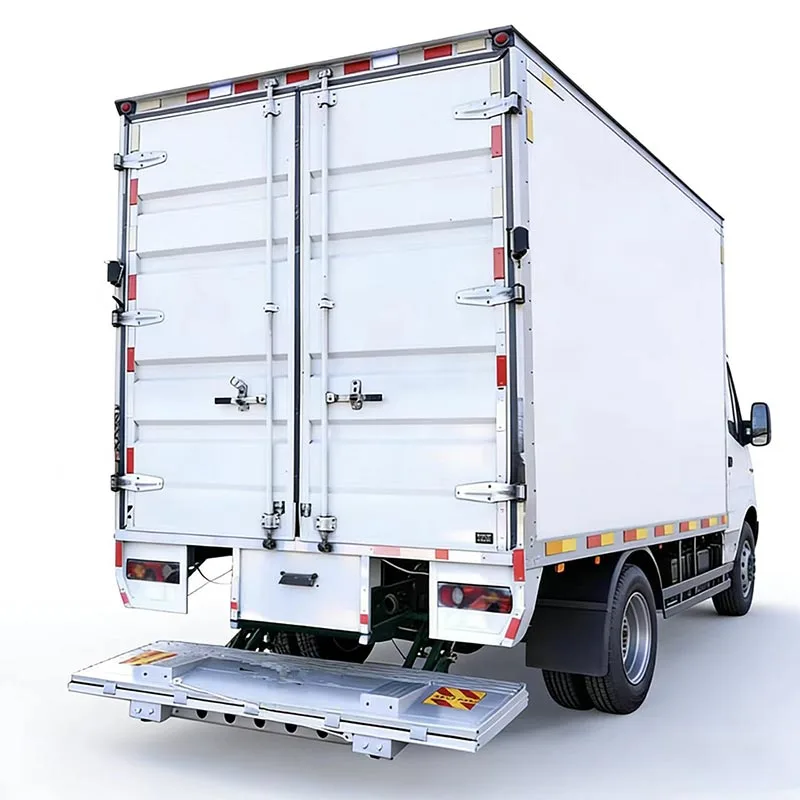

Nostra aliquet sub vehiculis sub tergo vehiculi complicatum latet. Quando discursibus et clausum est praebet plenam sublatione / demisso munus cum completum onus facultatem.
Specialiter disposita ad refrigerated aliquet in frigore catenae logistics.

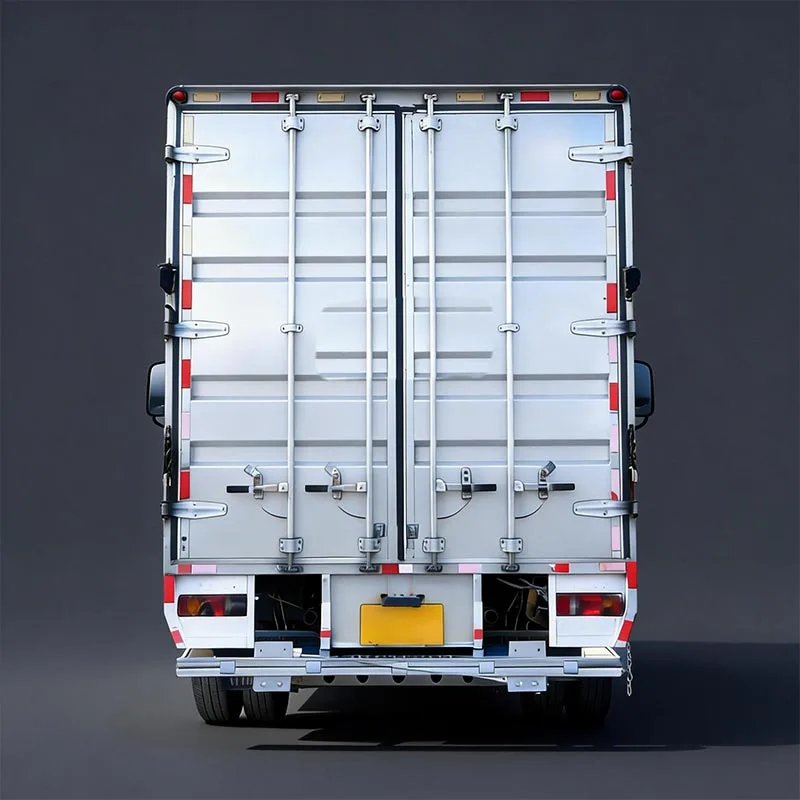

positio institutionis impedimentum vitat cum gregalibus navalibus vel frigido suggestis repono, salvis spatium operandi.
| Parameter | Specification |
| Brand | Tota Chain Tech |
| Type | Truckunder liftgate |
| Capacitas elevatio | 1000-1500 kg (2200-3300 lbs) |
| Operatio suggestus | Manual explicatio & duplex |
| Platform Material | Leve, corrosio-repugnans aluminium alloy |
| Platform Size | Standard: 1220 x 810 mm (48" x 32") Custom sizes available upon request |
| Potentia Source | 12V/24V systema hydrau |
| Elevatio Volo | 8-12 seconds (plena plaga) |
| Adscendens Compatibility | Utiq; maxime Classis 3-6 aliquet & traditio vans (North American frame signa) |
| perago | Iactata pulvere pectora ferro; corrosio repugnans sal patere ambitus |
| Features salutem | Superficies suggestus anti-lapsus, mechanismus pessulus salus, praesidium cultro |
| Warranty | I-annus limited warantum (meets North American aftermarket exspectationes) |
| Exemplar | Capacitas elevatio | Altitudo elevatio (mm) | Potestas Pack | Opus Pressura | Celeritas elevata (mm/sec) |
| CB-QB10/130ZS | 1000kg | 1300 | 12/24V | 16Mpa | 80 |
| CB-QB15/155ZS | 1500kg | 1550 | 12/24V | 16Mpa | 80 |
| CD-QB20/155ZS | 2000kg | 1550 | 12/24V | 16Mpa | 80 |
| CB-QBHZ10/110SZ | 1000KG | 1100 | 12/24V | 16Mpa | 80 |
| CB-QBCZ15/135SZ | 1500kg | 1350 | 12/24V | 16Mpa | 80 |

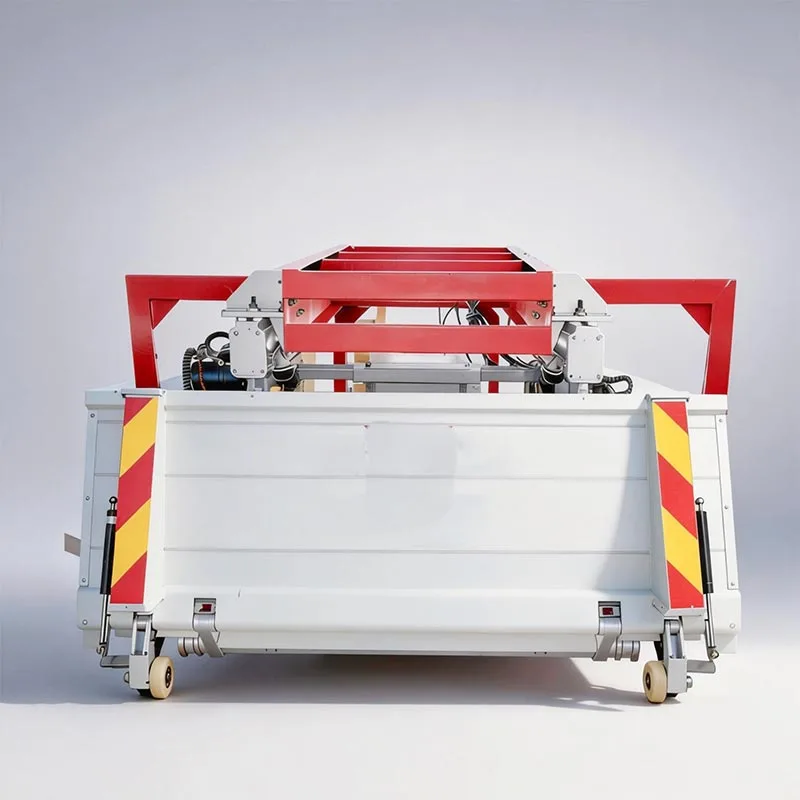

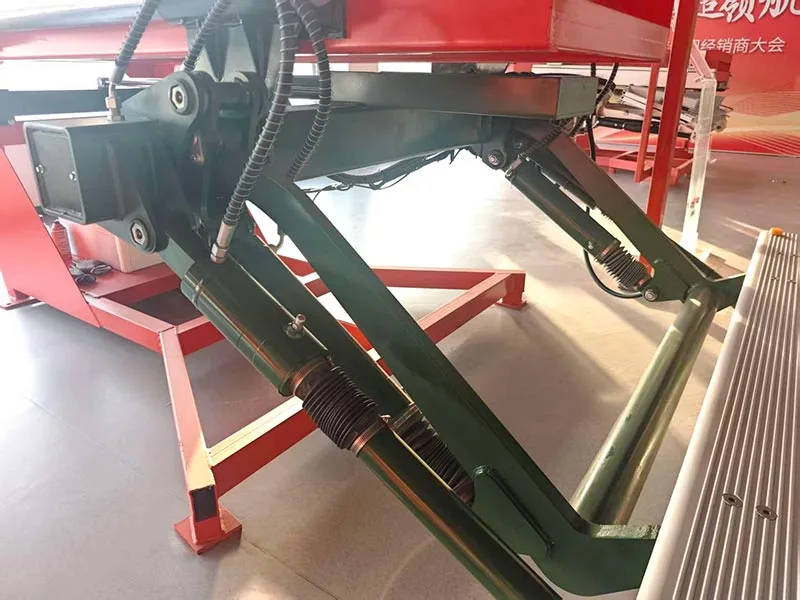

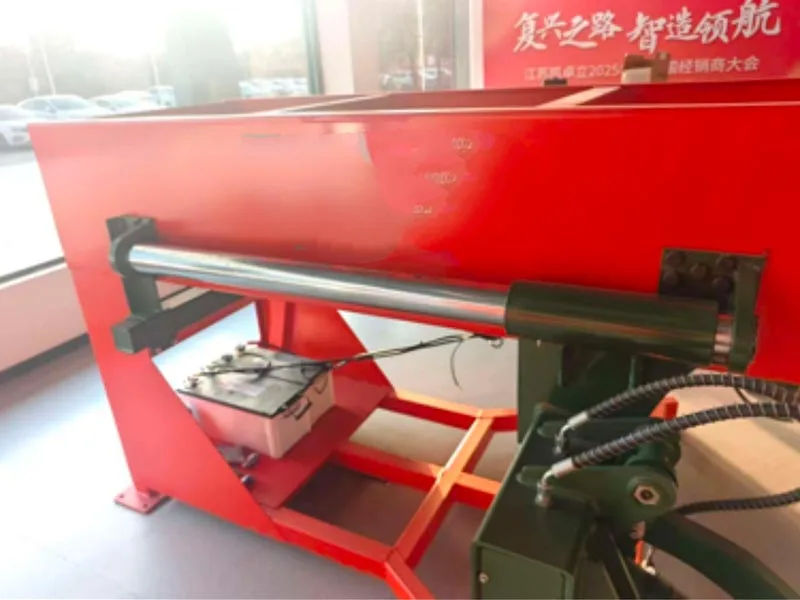

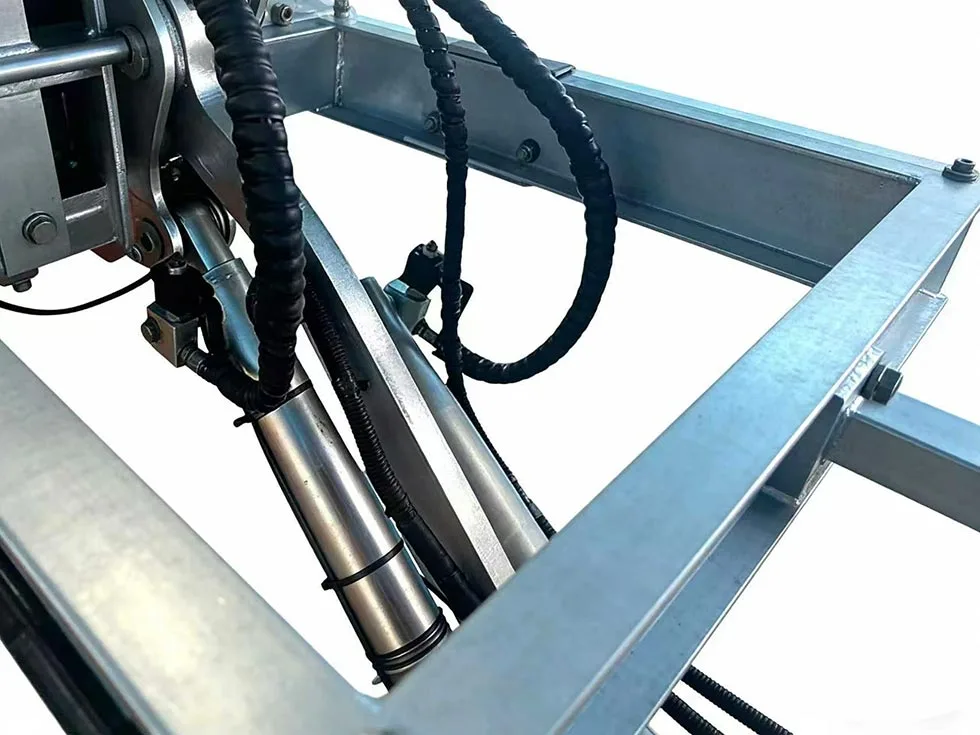

Frame ConventusMain Frame、Lifting Arms、Lift Cylinder、Door clusit Cylinder、Push excute cylindri
Rosci ConventusFront Aluminium Platform、 Audi Aluminium PlatformFolding Link Block、Platform Support Bracket / Platform Cardo Bracket、Asiste Torsion Spring、Foot Switch、Safety Luminum
Rector Rail ConventusRound Guide Rail、Guide Rail Bracket、Guide Rail pendentem Plate

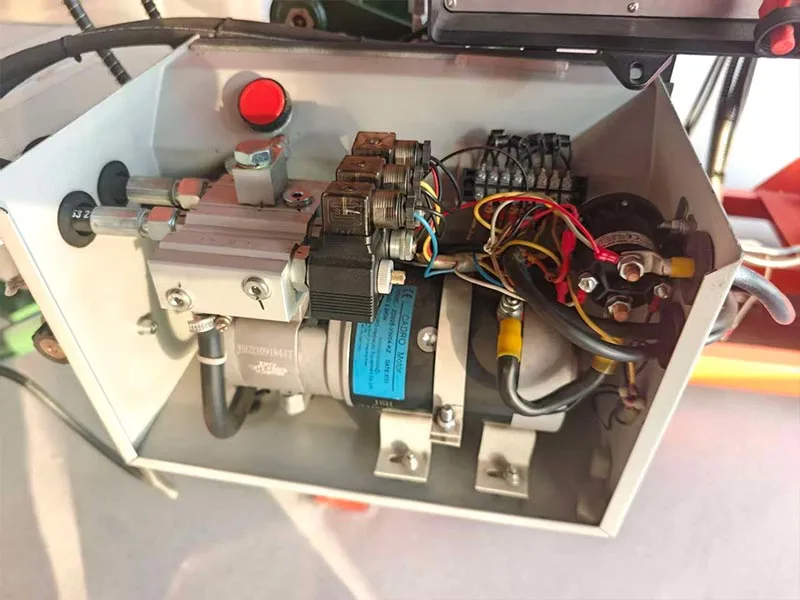

Potestas UnitOil Tank、Hydraulic Oil、DC Motor、Gear Pump、Contactor、Multiplex Valvae

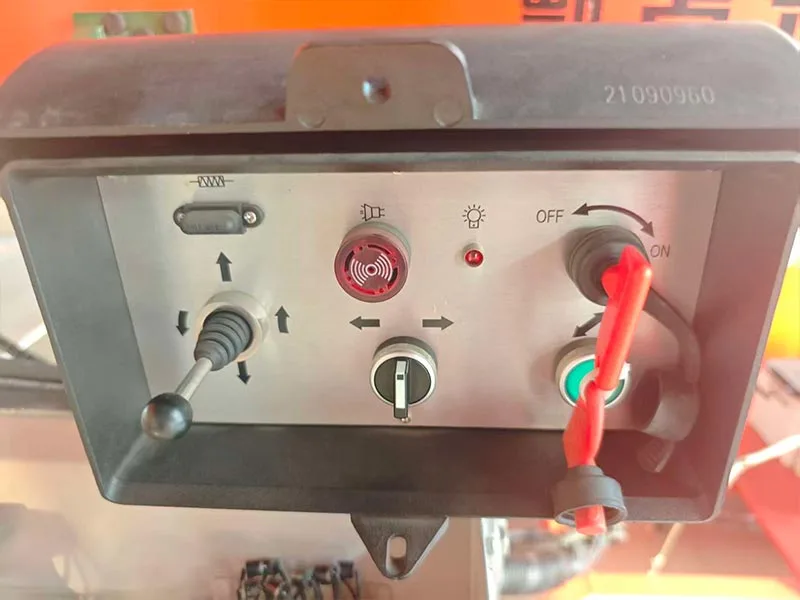

Imperium EletricalImperium Box、Control Panel、Imperium Puga pyga、Power Switch、Buzzer、Wired Longinquus Controller

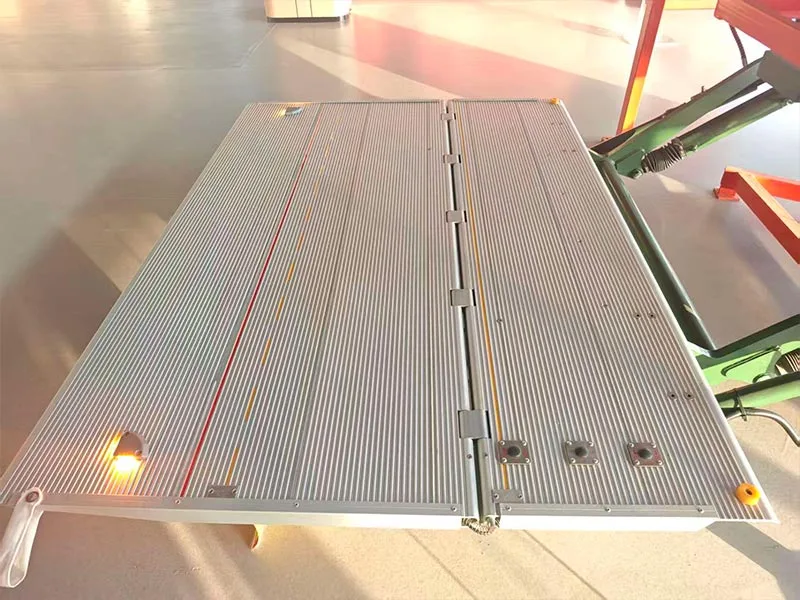

● Folding & Tucking: Aluminium duplicale plicarum suggestuum compacte et presse sub vehiculum tundunt, plenum novissimum accessum servans ac necessitatem extra alvi ductam tollendam, specimen pro stricta oneratione navalium et itinera urbana.
● Nulla impendere: Dissimilis cantileveri exempla, reposita non extet, periculum damni minuens et in spatiis angustiis melius maneuverabilitatis.
● Torsion Spring Assiste: Adsistens torsionis fons vim minuit quae requiritur ad explicandum / plicandum, faciens operationem unius personae leviorem et minus strenuam.
● Guide Rail Subcision: Gubernator undique clausus efficit suggestum in calle moderato, lineari, eliminando titubationem et jams communes in consiliis cantilenis.
● Potentia consistens: De autocineto DC motore, bracteis sentibus, et valvae multiplex libera certa, pressio hydrau-lew libera ad levationem et demissionem lenis, sicut exempla cantileva nostra.
● Cylindri durabiles: Levamen, ostium-clausum, et cylindri impulsus viverra machinantur ad vitam longam, cum sigillis multi- stratis ad resistendum fluidi damno et corrosioni.
● Integrated Salutis Lumina: Lumina tuta aedificata meliorem visibilitatem in operatione, criticam notam pro humili lumine vel negotiorum ambitus.
● Pedites Switch Imperium: suggestus pedis transibit manus liberam operationem permittit, periculum lapsus minuens et casus comparantur ad exempla cantilevorum quae unice in longinquis aut manu moderantibus nituntur.

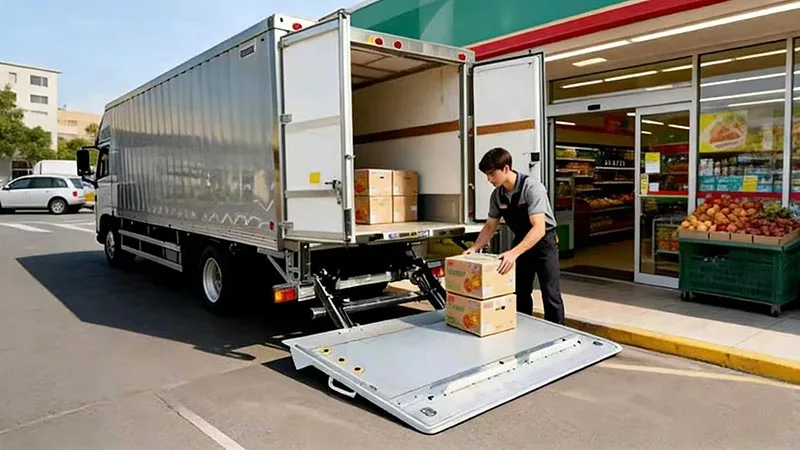

Urban E-Commerce Logistics
Medium- & Long-Haul Professional Transport Frigidi catenam, aedificationem materiae, supellectilem, partes auto-

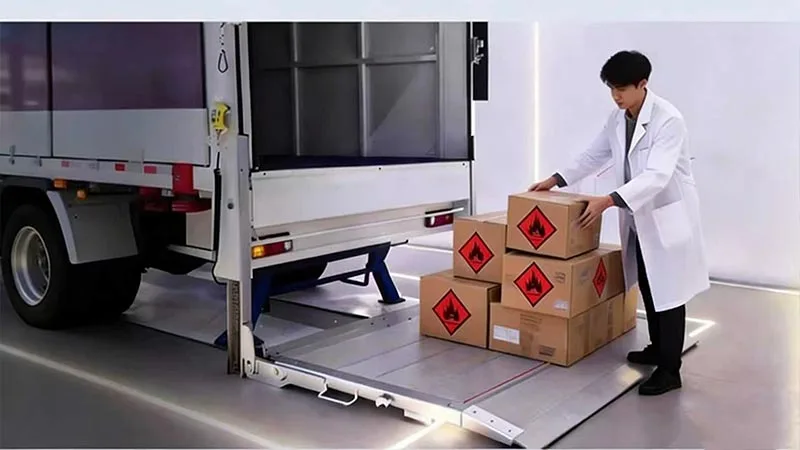

Specialis Industry & Functional：perditio collectione, bona ancipitia, medicinae accessibility
